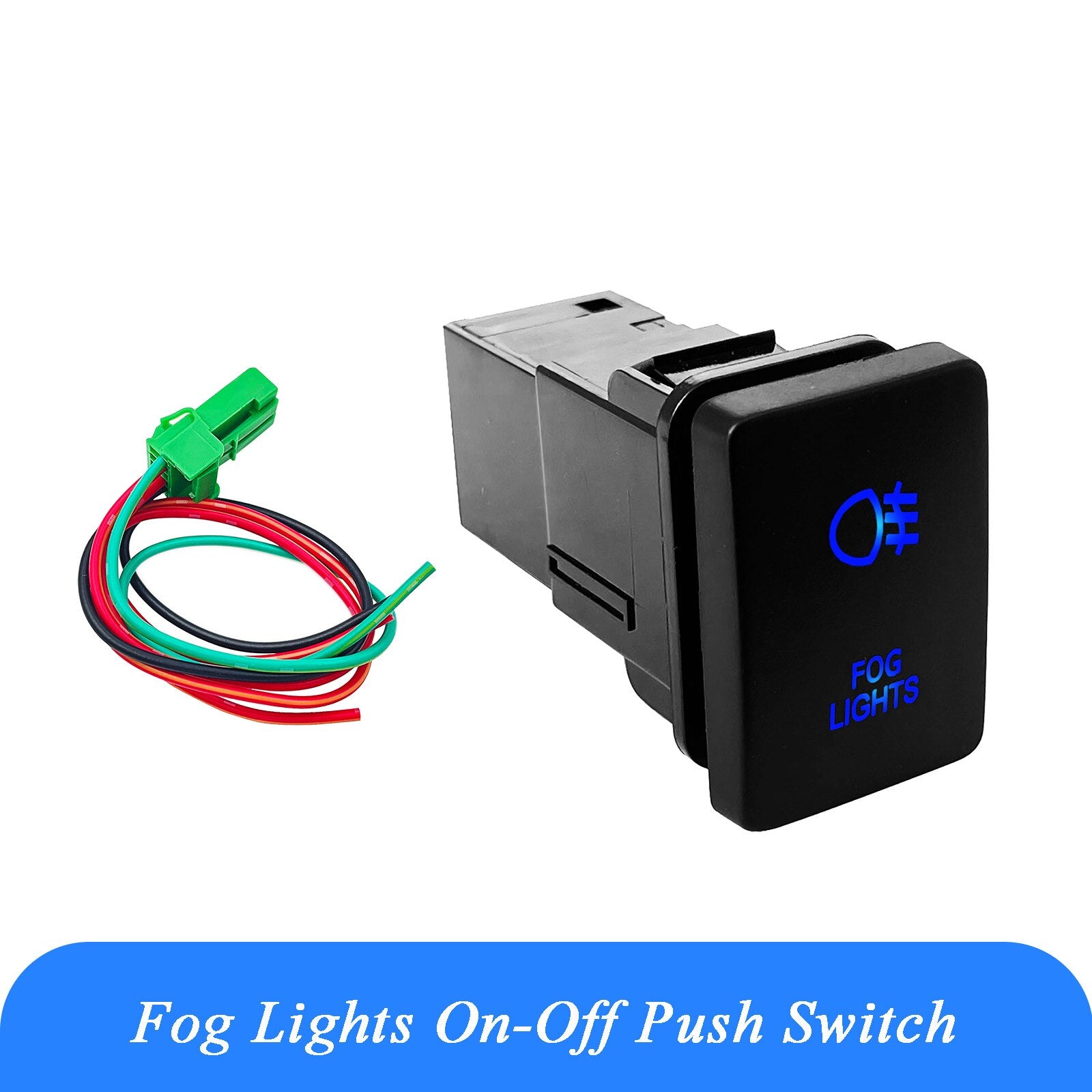

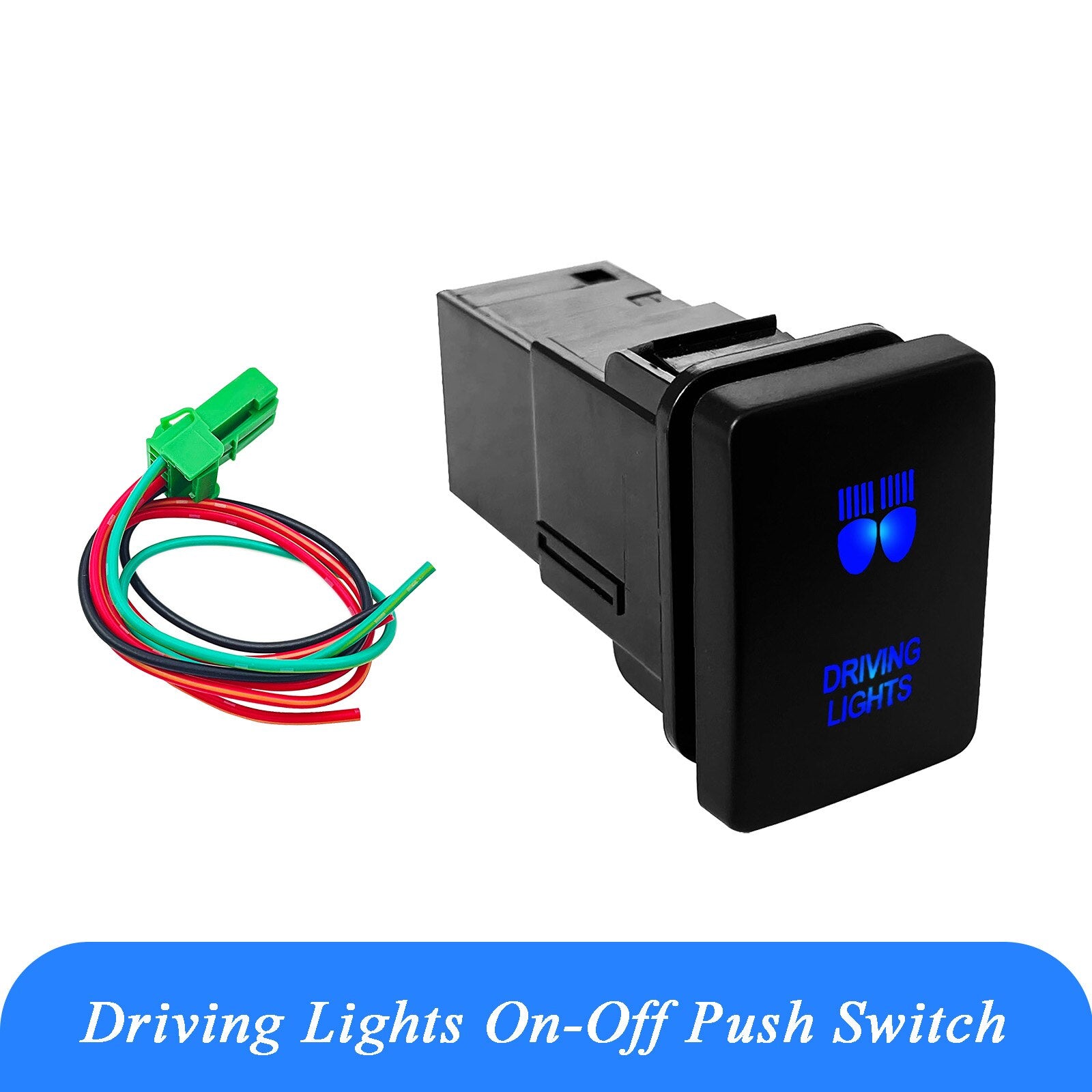

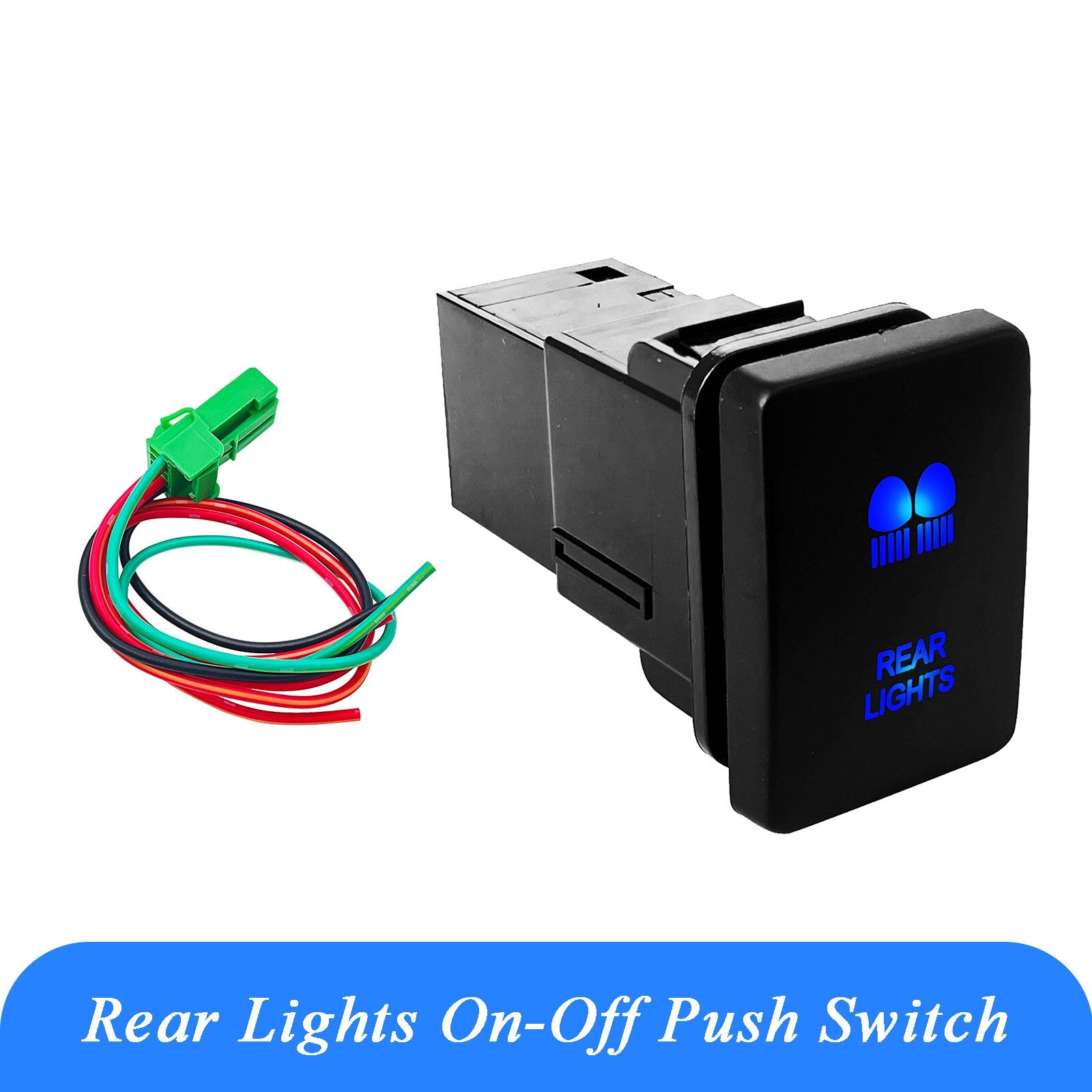

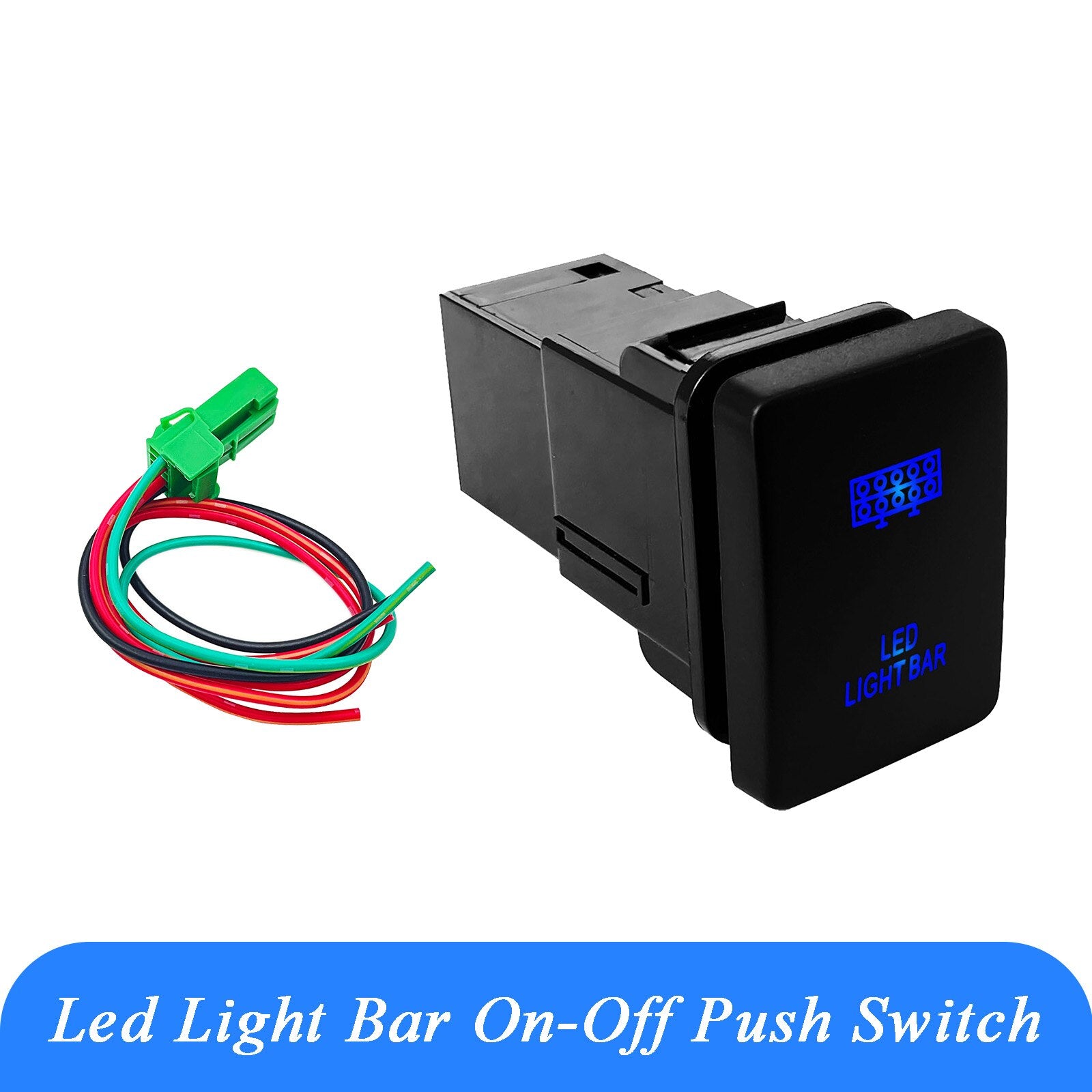

12V Blue Led Push Button Switch For Toyota Direct Replacement

• Black hard surface rocker, Laser etched Legend

• Led: blue

• Rated at 3Amp 12V

• High quality single pole single throw

• Switch Action: ON OFF maintained switch, (ON)-OFF momentary switch

• HORN, GARAGE OPENER are (ON) OFF switches. They will spring back when you remove your finger

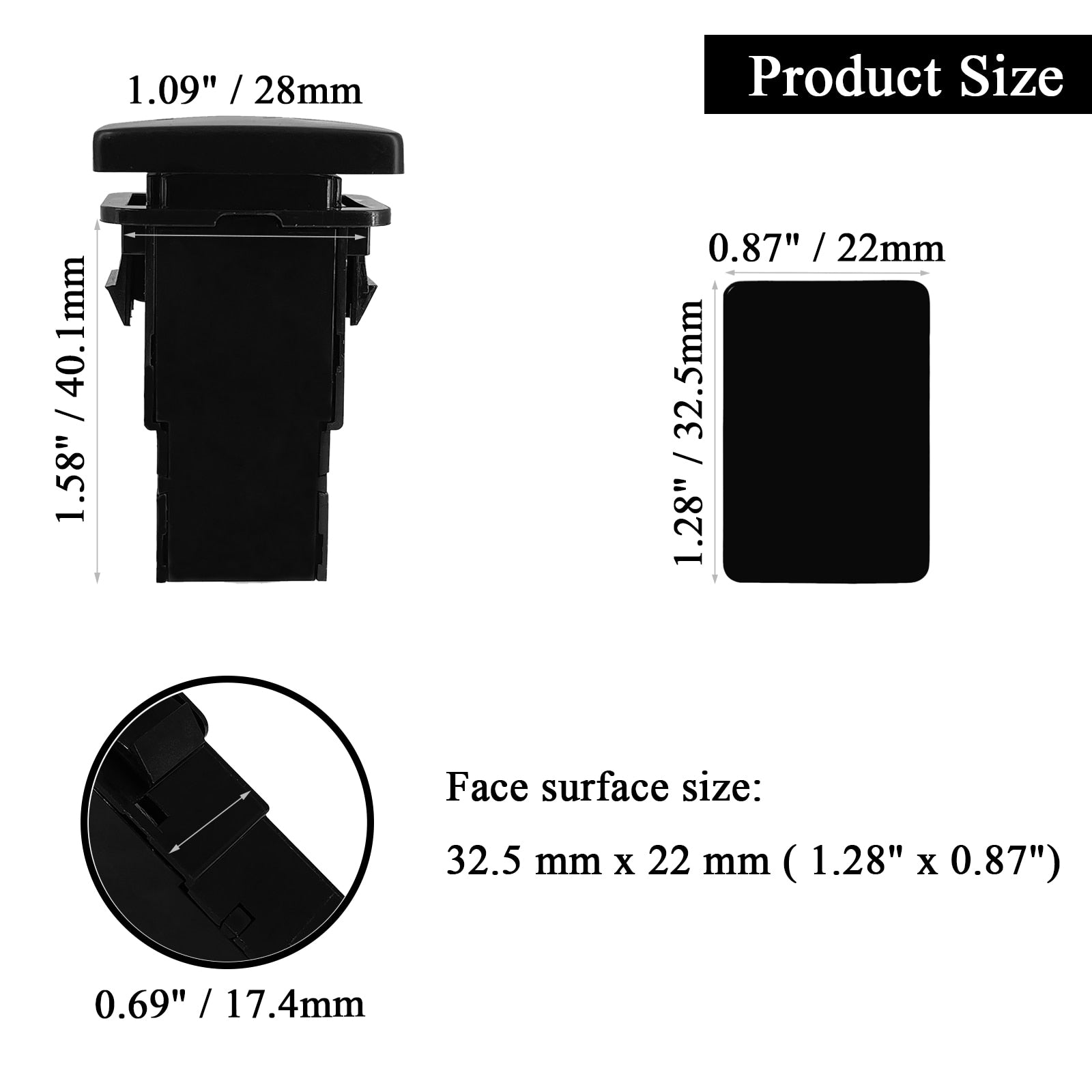

• Face surface size: 32.5 mm x 22 mm ( 1.28" x 0.87"), Uses the original mounting hole of the vehicle

• Wateproof Rating: IP68

• Wiring supplied with switch

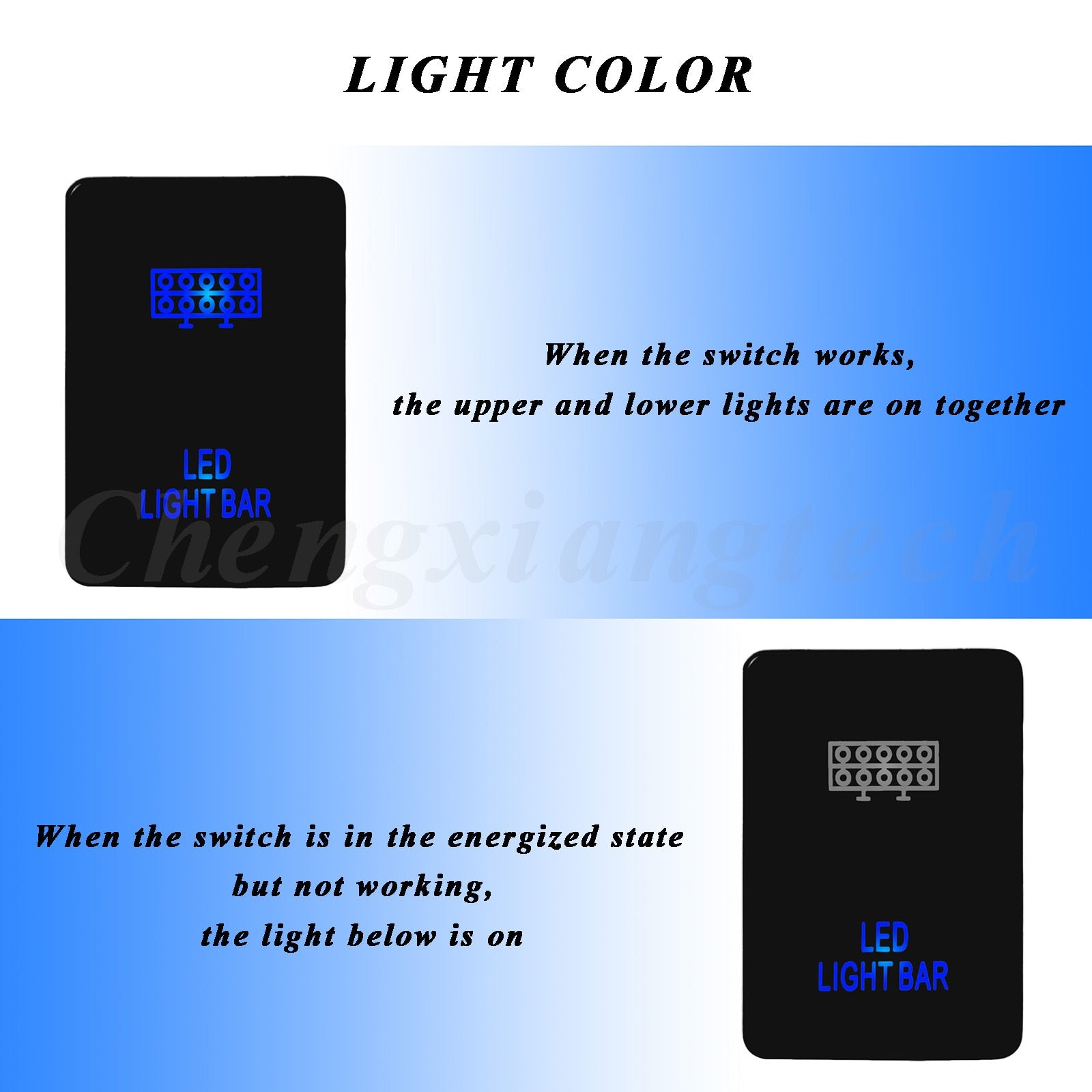

• Upper light is ON when the switch is pressed IN; Lower light can be wired to separate dash light circuit

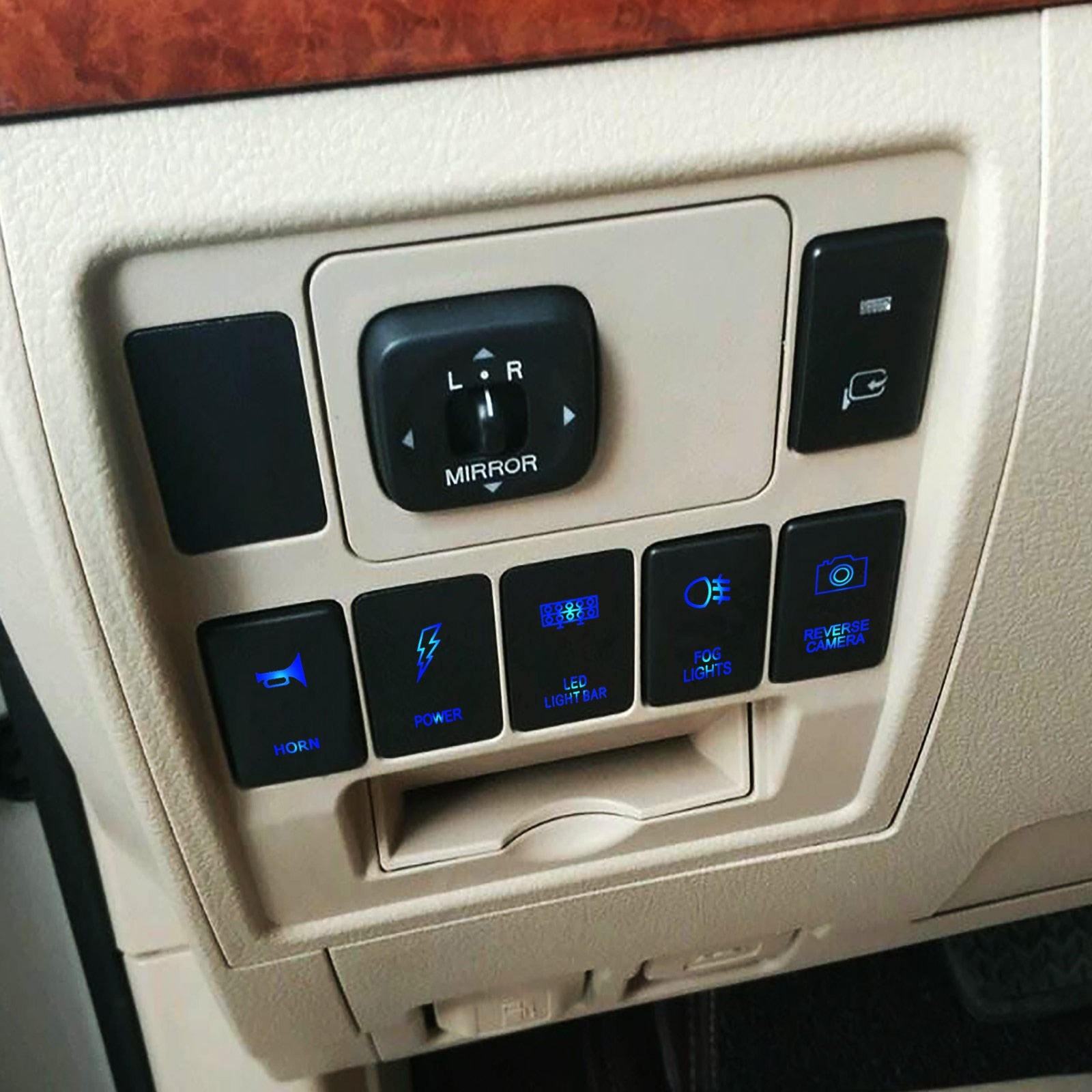

• These switches are an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's

• All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

This Switch Suits the following models : Additional vehicles that are not listed may be suitable for these switches. Please Check Sizing

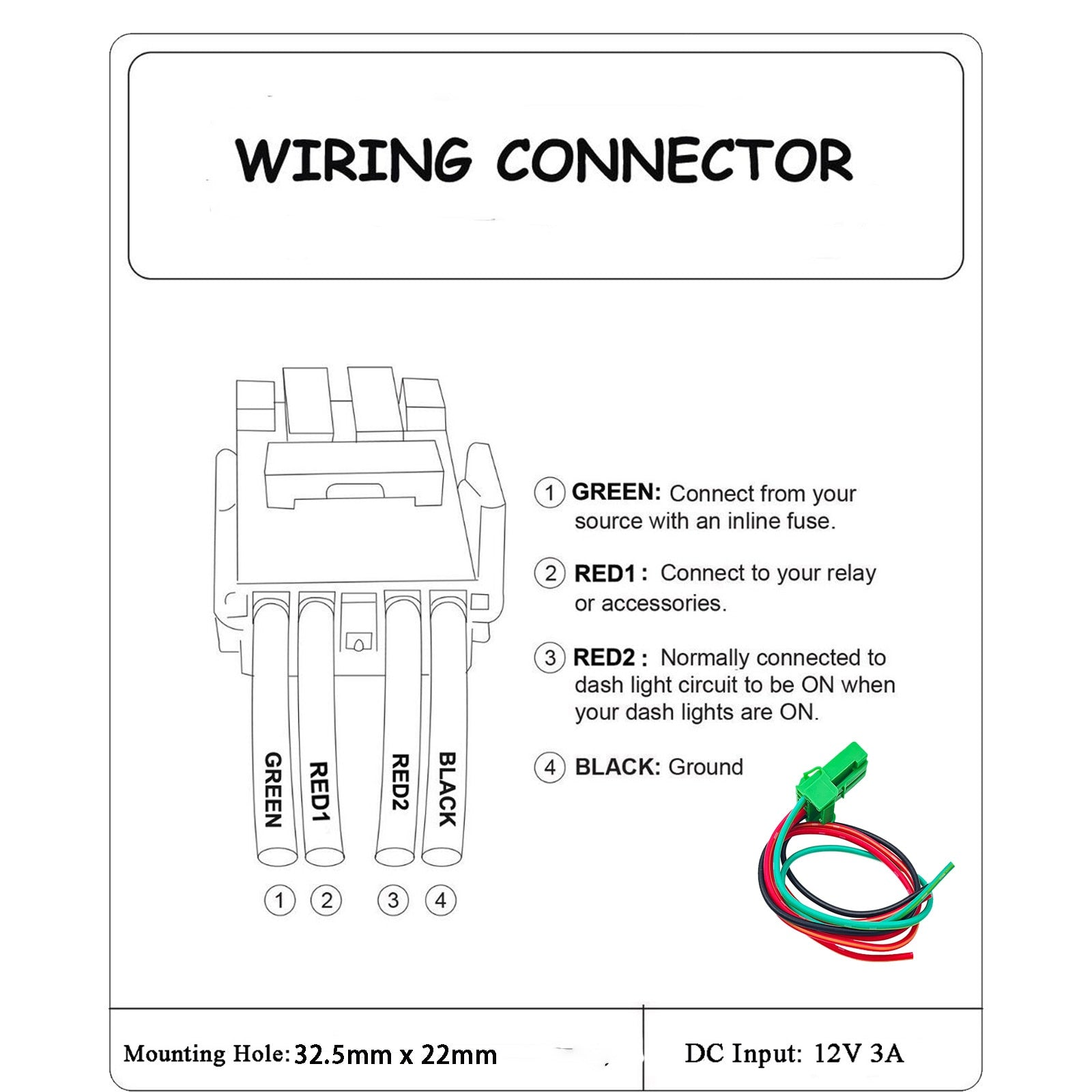

Wiring Diagram

①Green Wire: Connect from your source with an inline fuse

②Red Wire-1: Connect to your replay or accessories

③Red Wire-2: Normally connected to dash light circuit to be ON when your dash lights are ON

④Black Wire: Connect to Ground

Dual Led Color

Green, Blue, Orange, Red

How to Buy Multi-Switches ？

1. Please buy the total quanties you want

2. Tell the numbers in the picture

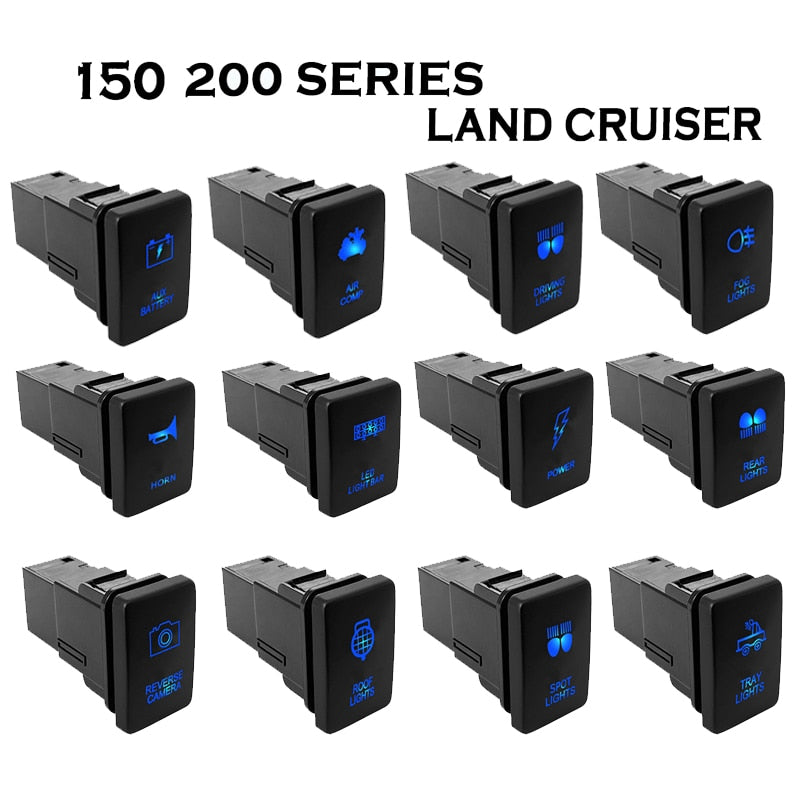

Logos We Have

#6 ( GARAGE OPENER ) and #7 ( HORN ) are momentary ON OFF. Others are Latching ON OFF.
